E-Z Press™ Inserts for Plastic (Thermoset or Thermoplastic)



E-Z Press™ inserts are threaded inserts designed for post-molding installation in either thermoset plastics or thermoplastics. A slotted design with diamond-knurled OD allows for “cold” installation with optimum torque/pull-out resistance. Cold installation of threaded inserts reduces the cost of moldings and eliminates the need to “chase” threads after molding.

Our E-Z Press™ inserts are available in three styles: flush, flanged, and reverse slot. All three types press into place for fast, easy installation. Anything from a rubber mallet to an arbor press can be used for installation.

Features:

  • • Install cold
  • • Reduce the cost of moldings
  • • Cut reject waste caused by misaligned and faulty inserts
  • • Eliminate the need to “chase” threads after molding
  • • Install properly without a precise hole depth

Installation:

Press Insert Installation

As the E-Z Press™ insert is installed, it compresses slightly along the slot. As the fastener is threaded into place, the insert expands and the diamond knurl is pressed into the wall of the hole, securing the insert in place.



Important Note: Hole size requirements may vary depending on a number of factors, including material and tools. We recommend that you test your particular application before ordering.



E-Z Press™ 240 Series Press Inserts - Flush for Thermoset & Thermoplastics

E-Z Press™ 240 Series Press Inserts - Flush

Can be installed level with or below the substrate surface. Internal threads from 0-80 to 3/8 and M3 and M6 are available in brass; internal threads from #2 to 3/8 are available in stainless steel.
Mechanical Testing
Dimensional Drawings

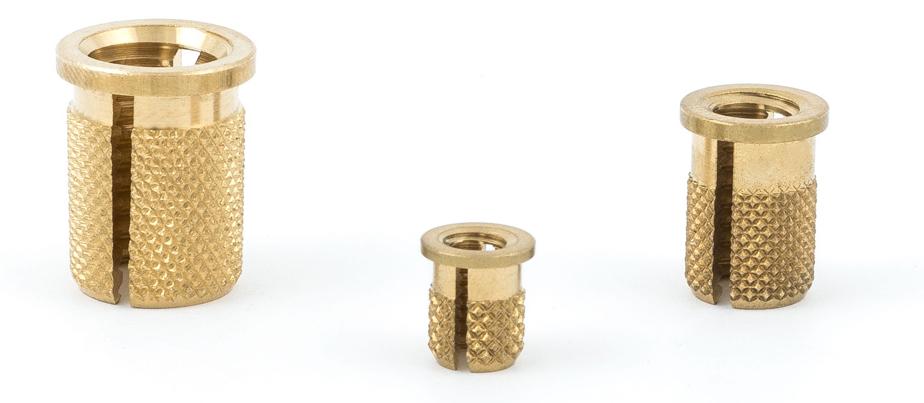

E-Z Press™ 260 Series Press Inserts - Flanged for Thermoset & Thermoplastics

E-Z Press™ 260 Series Press Inserts - Flanged

Provide a large bearing surface, and are ideal for fastening terminal connectors. Internal threads from #2 to 3/8 and M3 to M6 are available in brass; internal threads from #2 to 1/4 are available in stainless steel.
Mechanical Testing
Dimensional Drawings

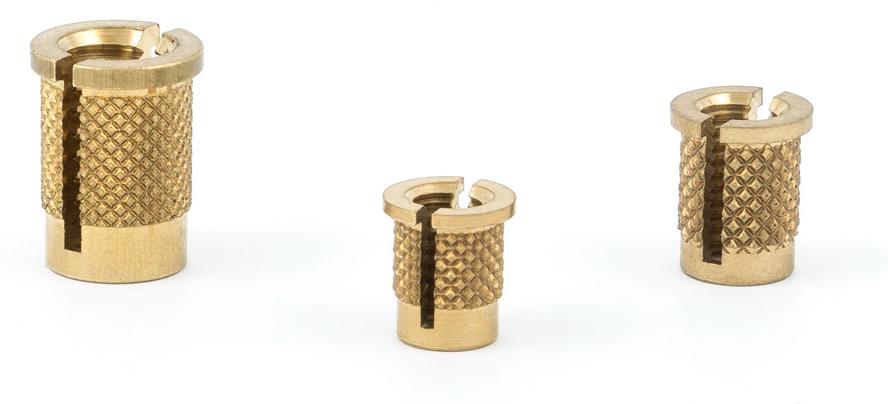

E-Z Press™ 260 Series Press Inserts - Reverse Slot for Thermoset and Thermoplastics

E-Z Press™ 260 Series Press Inserts - Reverse Slot

Designed for installation from the back side of the material and accommodate reverse screw entry for maximum pull-out resistance. Internal threads from #2 to 1/4 are available in brass.
Mechanical Testing
Dimensional Drawings
